DM66 Ready-Stock Rugged Outdoor GPS Smartwatch with Offline Maps

DM66 Ready-Stock Rugged Outdoor GPS Smartwatch

DM66 is a rugged outdoor GPS smartwatch developed for sports, adventure and health-focused wearable programs. It combines multi-satellite positioning, offline maps, route return, a large AMOLED display, 5ATM water resistance and an 850mAh battery in a reinforced outdoor body.

Ready Stock, Light Customization and Deep Customization

The DM66 is a ready-stock model, supporting sample evaluation and faster order planning. Customers can order the standard ready-stock configuration or choose light customization such as product logo, watch face, Bluetooth name, packaging and user manual. Deep customization—including firmware and UI development, app branding, function adjustments and project-specific development—can also be evaluated according to the required quantity, technical scope and development schedule.

Reliable Multi-Satellite Positioning for Outdoor Use

The DM66 uses the CC1165W positioning chip and supports GPS, BDS, GLONASS, Galileo and QZSS. AGNSS assisted positioning and simultaneous multi-satellite positioning help provide dependable route recording for outdoor running, walking, cycling, hiking, swimming and other activities.

• GPS, BDS, GLONASS, Galileo and QZSS support • AGNSS assisted positioning • Offline map download through the GloryFitPro app • Workout route display on the watch • Route return and straight-line return navigation • Built-in compass, barometer and altimeter

2.13-Inch AMOLED Display

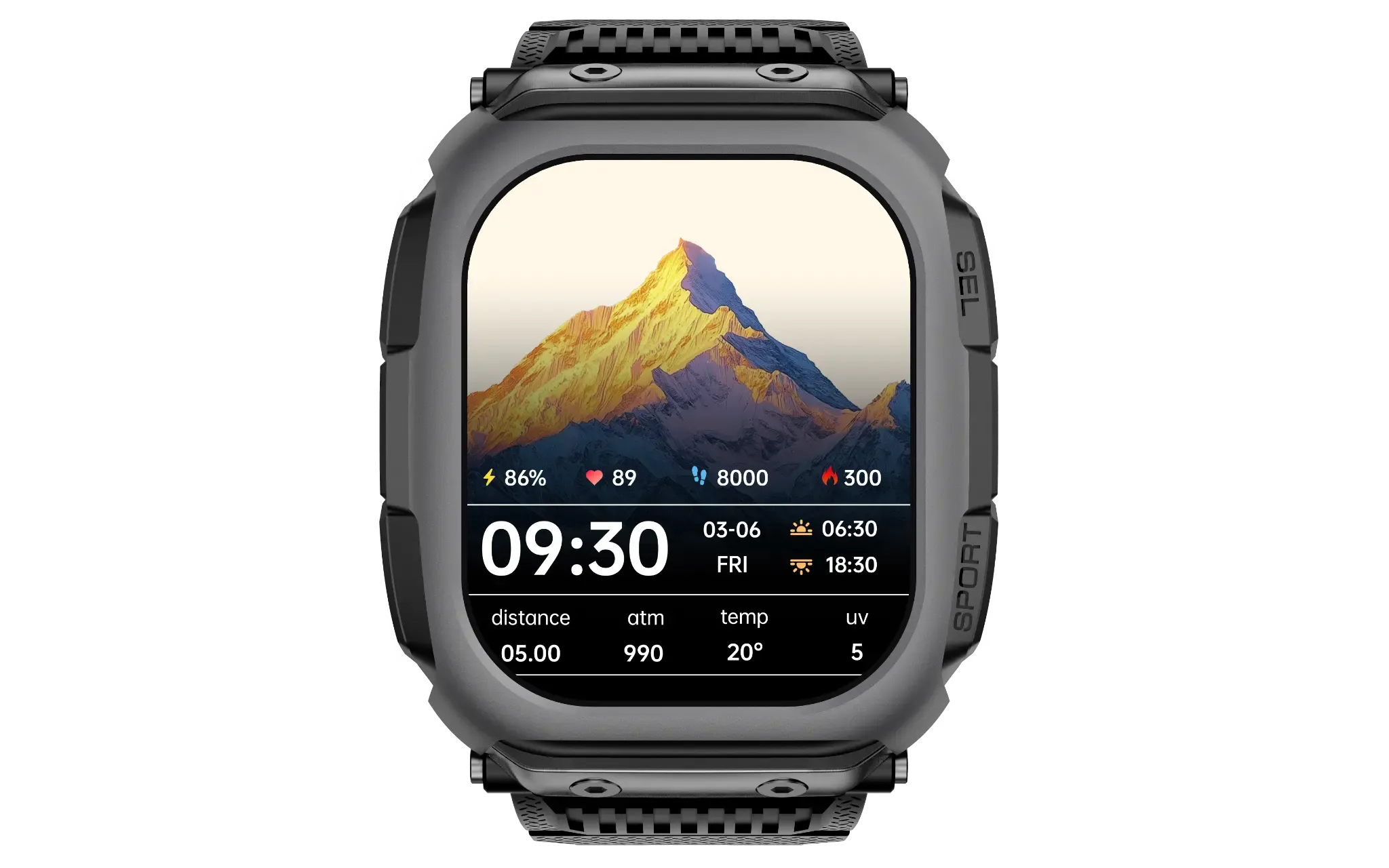

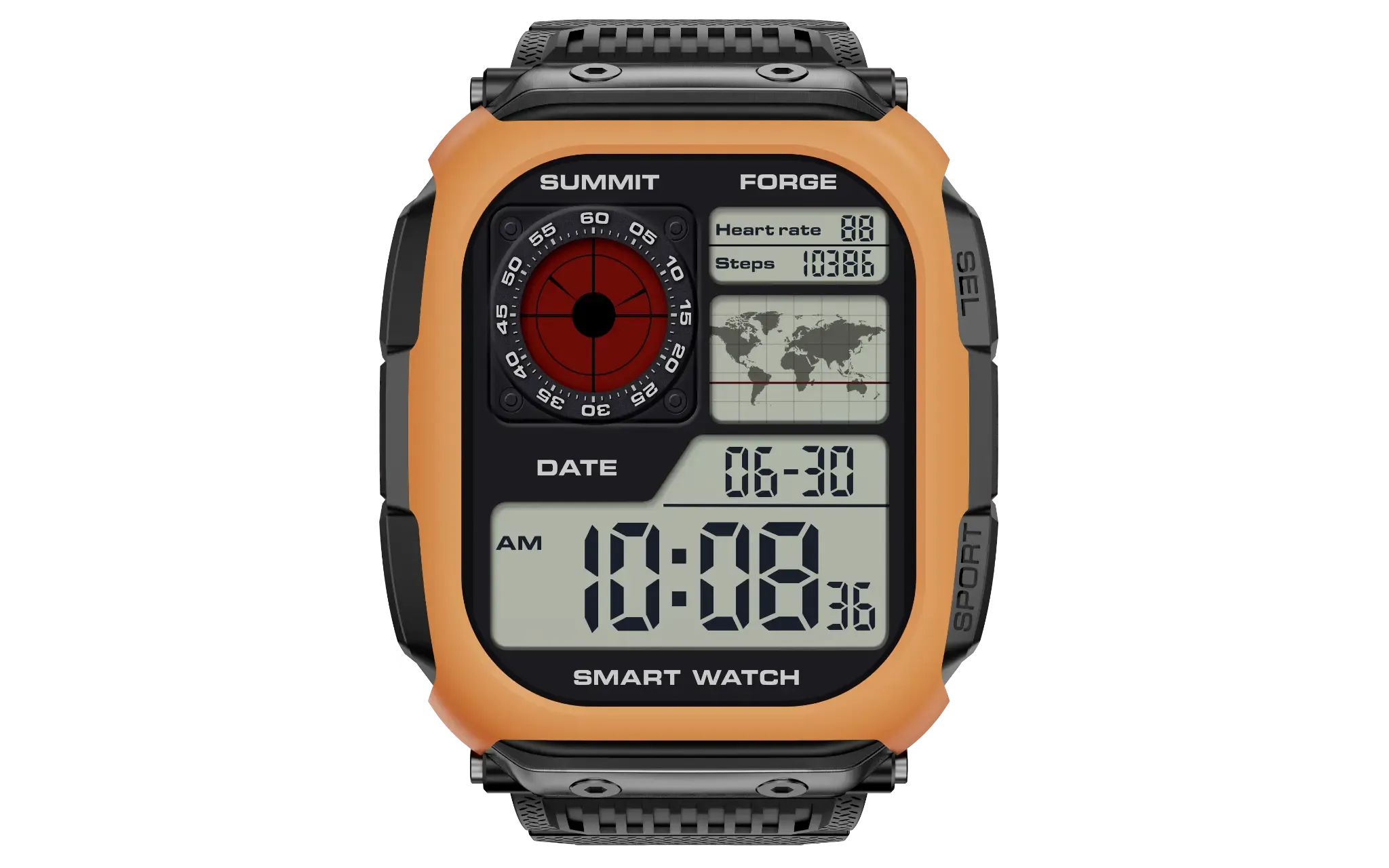

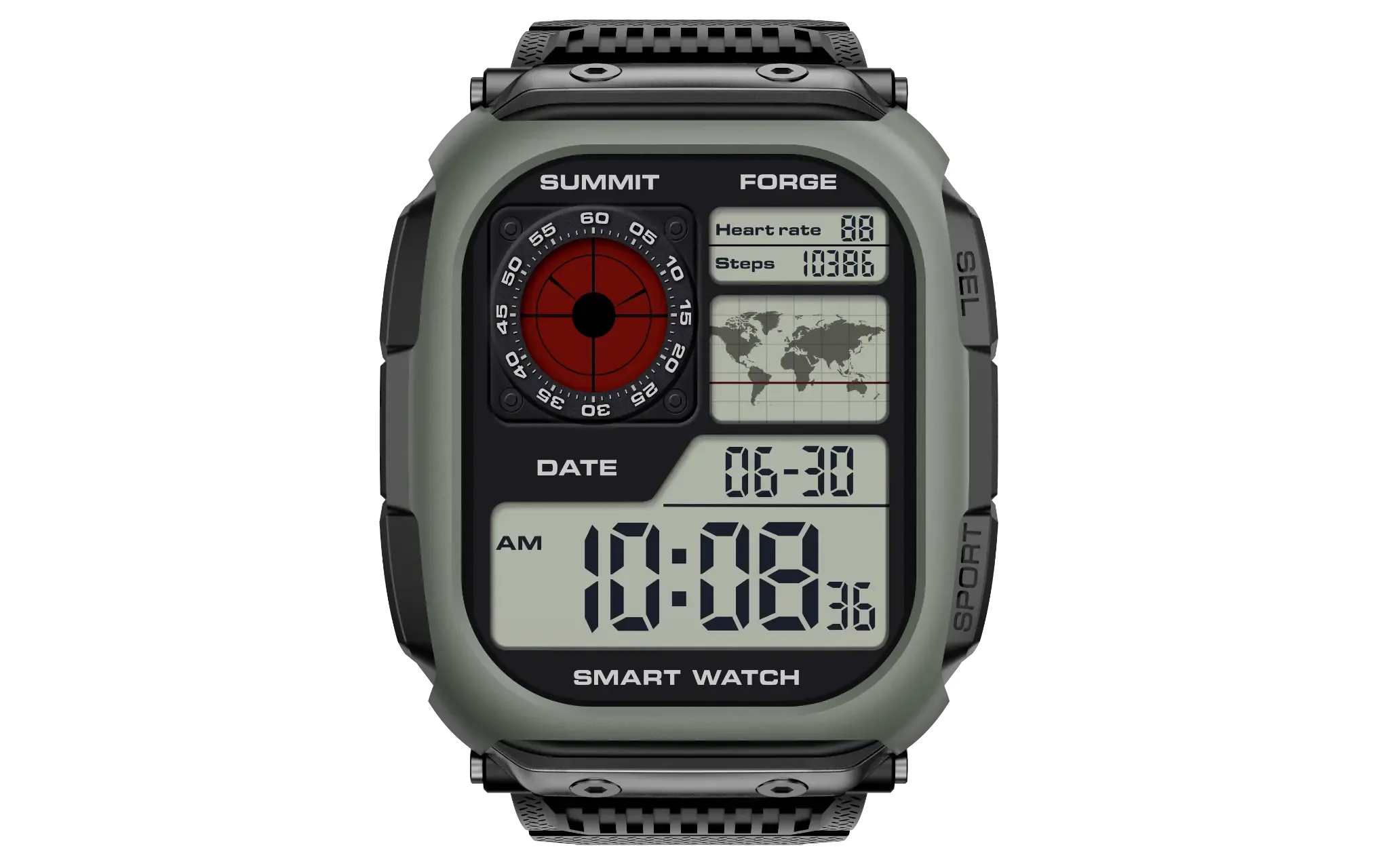

The 2.13-inch rectangular AMOLED display delivers a 410 × 502 resolution with full-touch operation. Six local watch faces, downloadable watch faces, customizable watch-face options, multiple always-on display styles and six UI menu themes give brands and users a flexible visual experience.

Rugged Construction with 5ATM Water Resistance

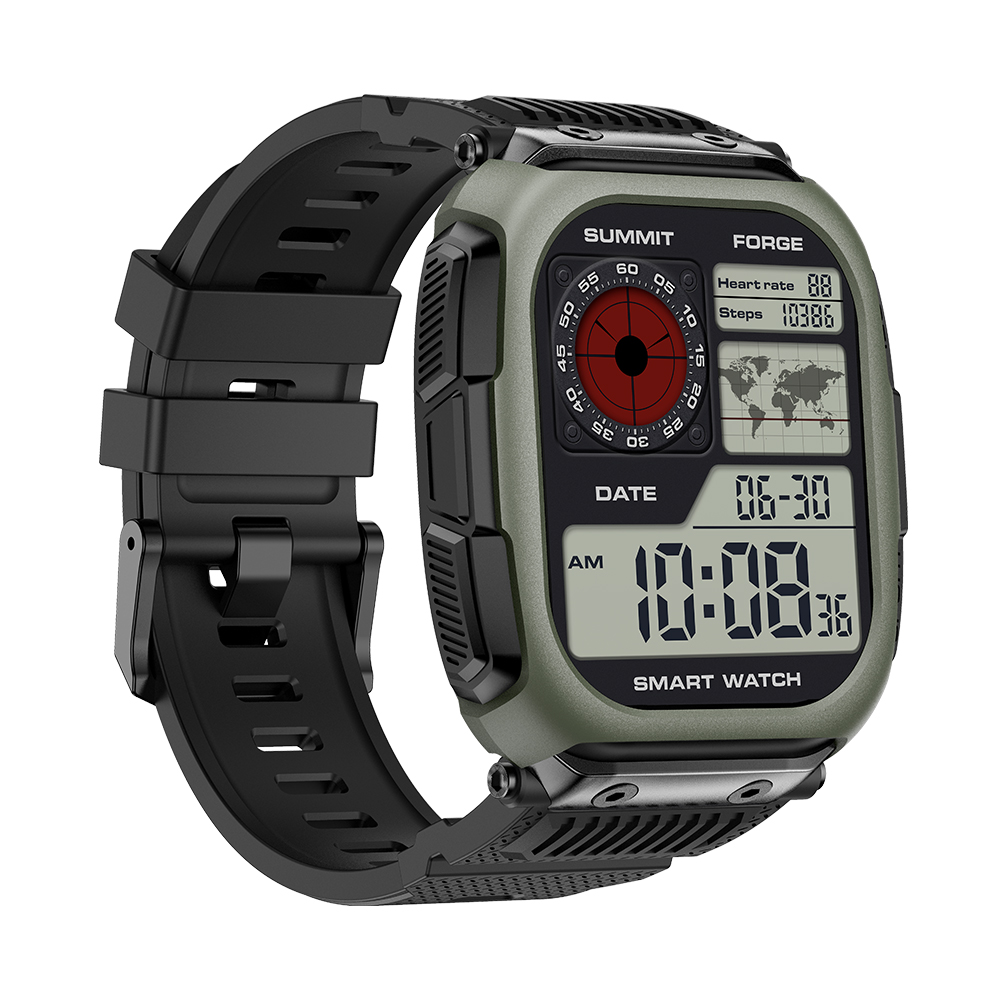

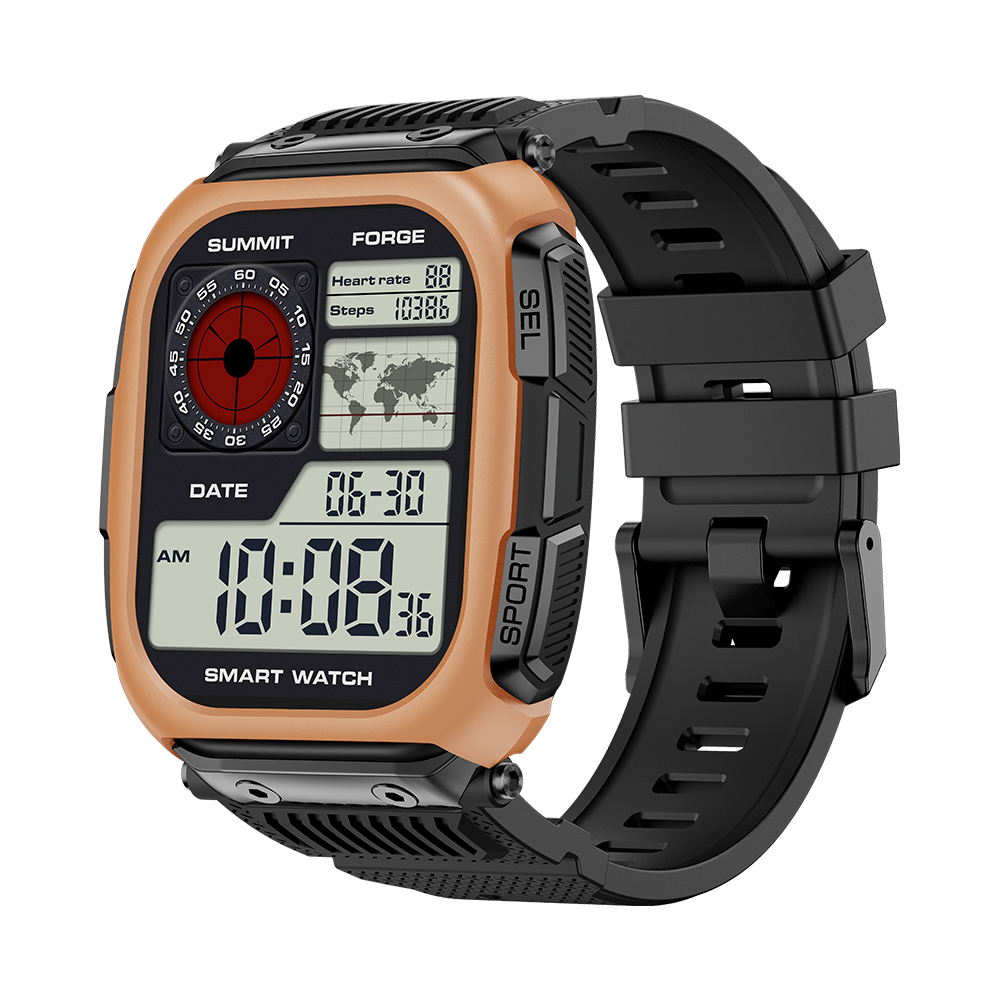

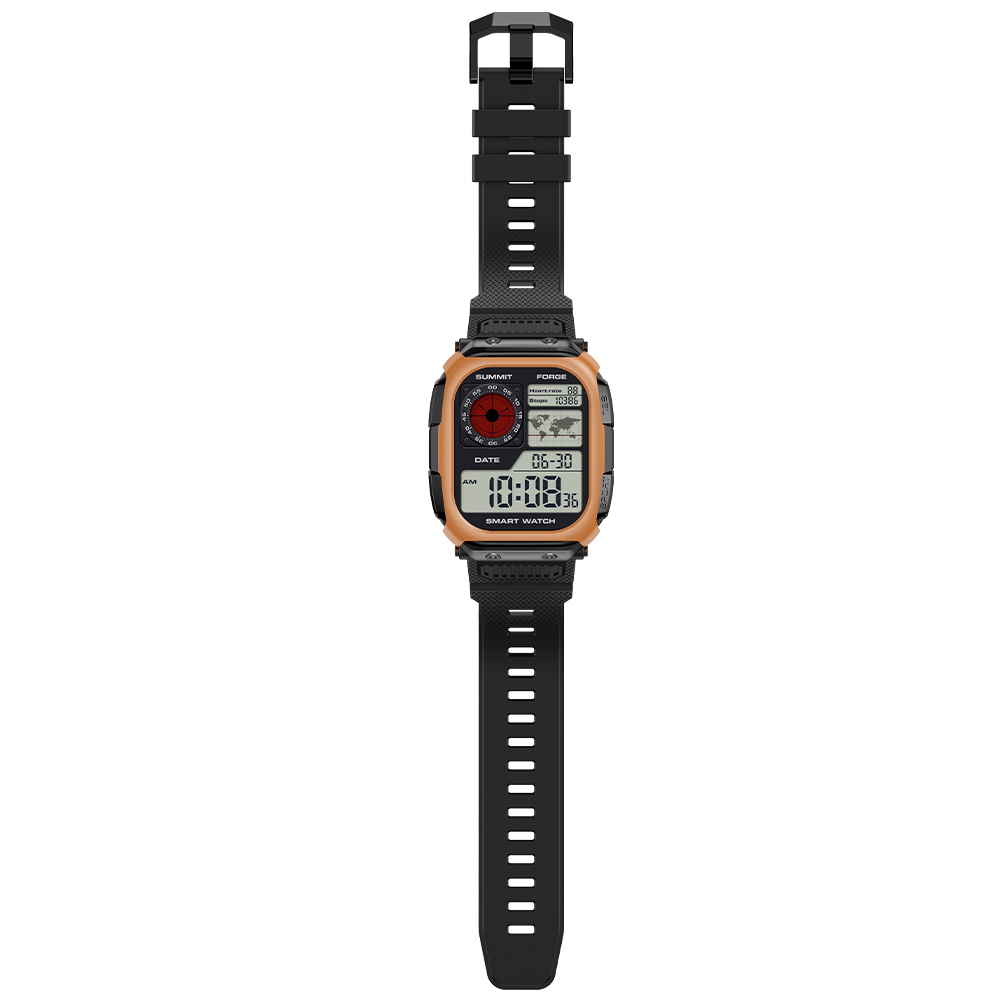

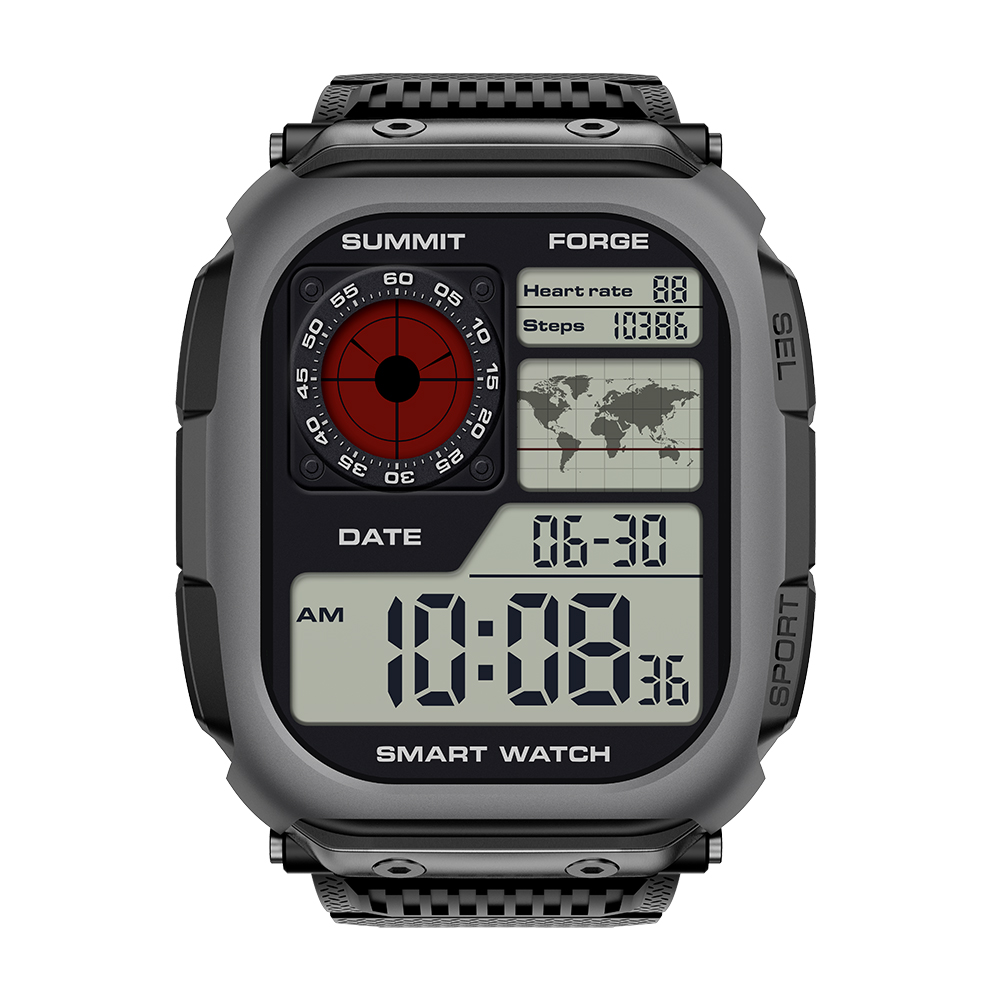

A TPU + PC two-shot molded middle frame creates a durable outdoor appearance and supports waterproof, dust-resistant and shock-resistant use. The 5ATM design, waterproof speaker and reinforced structure make the DM66 suitable for demanding daily wear and outdoor sport scenarios. Available watch-head colors include Grey, Green and Orange.

850mAh Battery and Practical Outdoor Controls

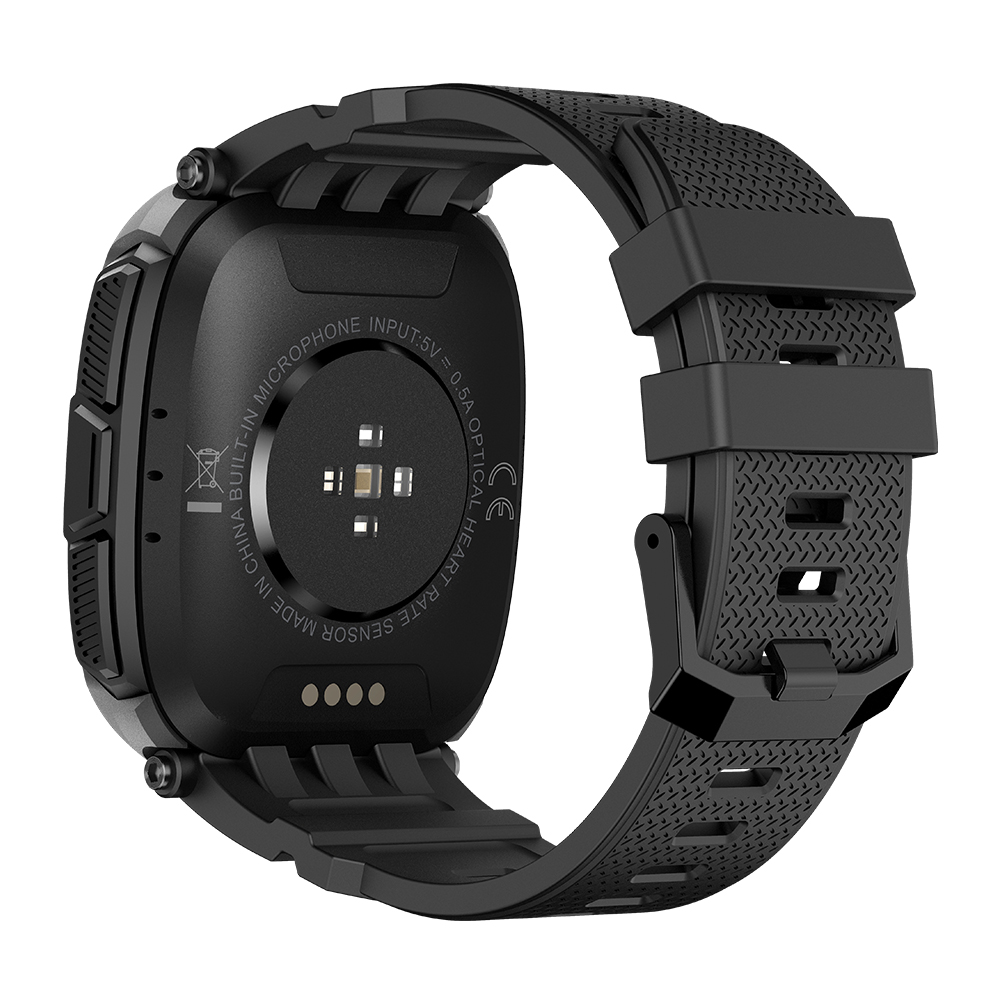

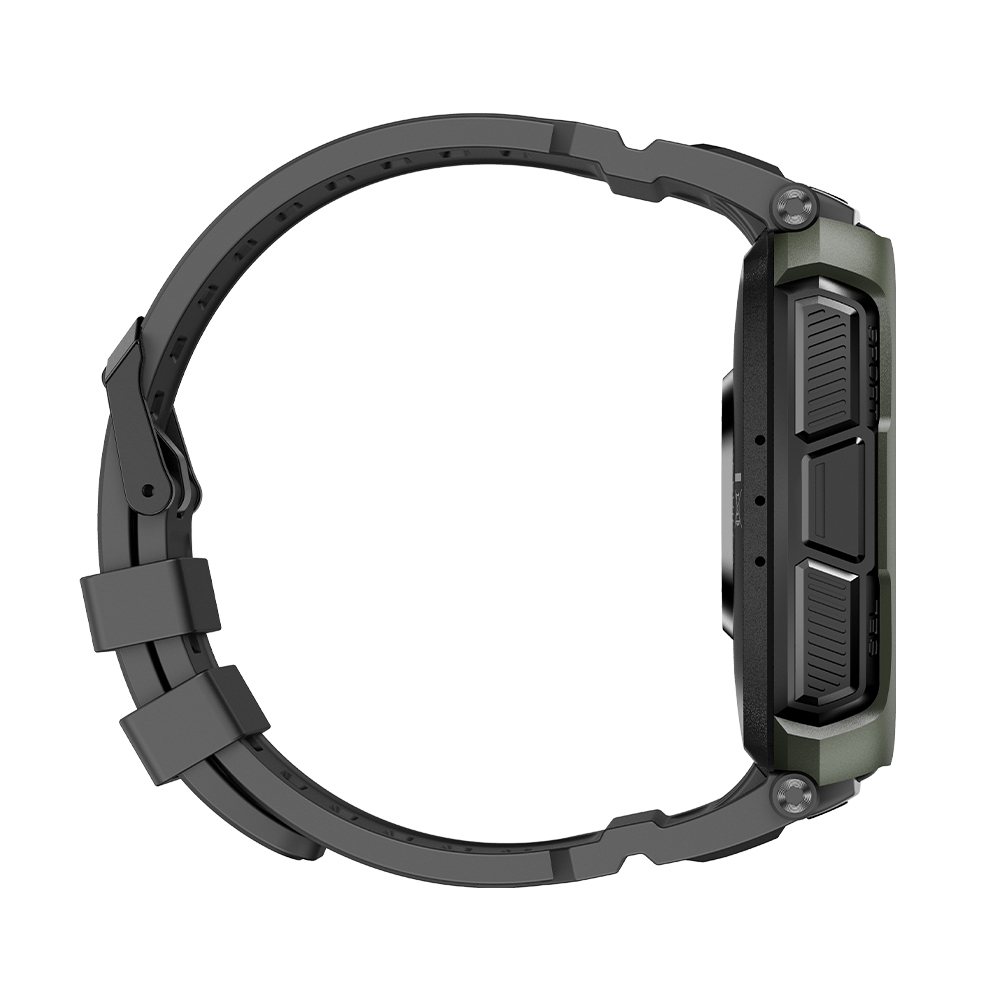

The DM66 is equipped with an 850mAh high-voltage polymer battery and magnetic contact charging. Two physical buttons provide fast operation, including a power/function key and a customizable shortcut key. Actual battery duration depends on GPS usage, calling, display settings and monitoring frequency.

170+ Sports Modes and Health Monitoring

The Cywee algorithm platform supports more than 170 sports modes, with five automatically recognized activities: walking, running, cycling, elliptical training and rowing. Health functions include continuous heart-rate monitoring, blood-oxygen monitoring, sleep and nap tracking, stress and emotion tracking, breathing exercises and women’s health functions.

Bluetooth Calling and Smart Daily Functions

With BLE 5.3, a built-in speaker and microphone, the DM66 supports Bluetooth calling, dialing, call records, contacts and SOS contacts preset through the app. Other functions include music control, voice assistant, weather, notifications, alarms, world clock, calculator, remote camera control, find phone and flashlight.

Key Specifications

Model: DM66 MCU: Actions ATS3085S GPS Chip: CC1165W Positioning: GPS / BDS / GLONASS / Galileo / QZSS with AGNSS Display: 2.13-inch AMOLED, 410 × 502, full touch Battery: 850mAh, magnetic contact charging Water Resistance: 5ATM Bluetooth: BLE 5.3 Sensors: Heart rate / SpO₂, compass, barometer and altimeter Sports: 170+ modes and 5 auto-recognized activities App: GloryFitPro for iOS and Android Dimensions: 57.5 × 47.5 × 14.5 mm Net Weight: 62.4 g Colors: Grey, Green and Orange

Compliance and Export Documentation

Available documentation includes CE, RoHS and FCC certification, a 5ATM waterproof test report, IEC 62133-2 battery documentation, MSDS, UN38.3 and air/sea transport reports. Certification applicability should be confirmed according to the target market and final project configuration.

OEM/ODM Support for Global Brands

SWL Technology (Shenzhen) Co., Ltd. supports ready-stock orders, light customization and deep OEM/ODM project development. Customization scope, MOQ, development cost and lead time are confirmed according to the final project specification.

Contact SWL Technology with your target market, estimated quantity, required functions, certification needs and customization requirements to confirm available stock, sample arrangements and project pricing.
